| Option Cards | ||||
|---|---|---|---|---|
| 1 |  |

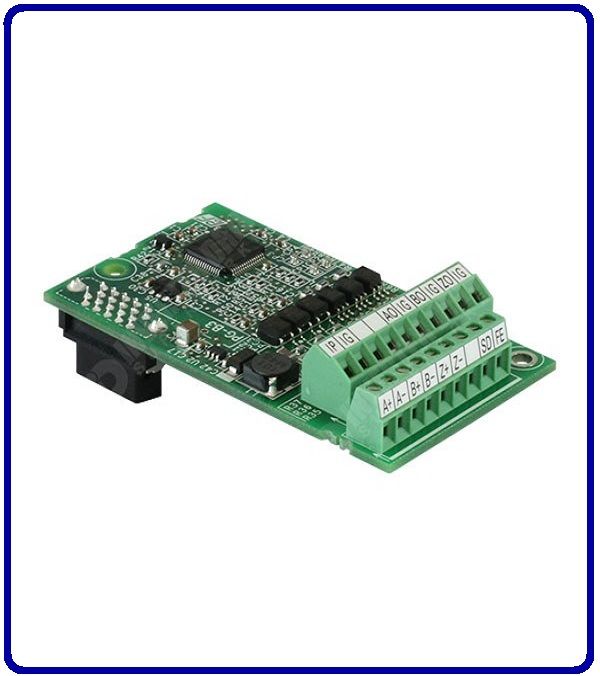

PG-B3 | For complimentary and open collector types: 3 track (A, B, Z pulse) Single track compatible (A pulse) Maximum input frequency: 50 kHz Pulse monitor output: Open collector Voltage output for PG: 12V, max. 200 mA |
|
| 2 |  |

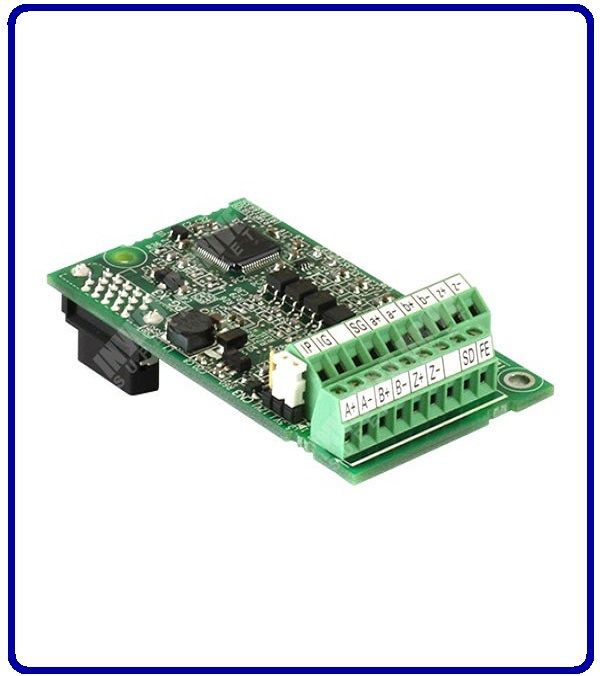

PG-X3 | For line drivers: 3 track (A, B, Z pulse) Single track compatible (A pulse) Maximum input frequency: 300 kHz Pulse monitor: Matches RS-422 Voltage output for PG: 5 or 12V, max 200 mA |
|
